Tactical UPS® Rugged Rack Mount
1.5 kVA UPS
Autoranging Global Isolated Input Accepts 90-264 VAC, 46-70 Hz
Input PFC, Battleshort, Manual Bypass, Elapsed Time
Plus Front Access Hot Swappable Battery Module
ETI P/N: ETI0001-2228E Rugged
MilSpec UPS Standard Front Panel Layout

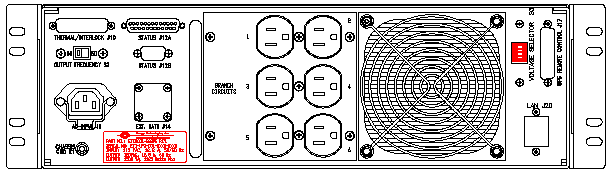

ETI P/N: ETI0001-2228E Rugged
MilSpec UPS Standard Rear Panel Layout
The field proven Military
Power® UPS
line is ideally suited for military, industrial, computer and telecommunications
applications requiring high reliability, rugged construction, compact size and
light weight design. These units are equally suited for use in shipboard, airborne,
vehicular, field deployed or fixed locations with controlled or uncontrolled
environments. The ETI0001-2228E is specifically
designed for lightweight global power by
the US Navy as the power source for critical systems because of the stringent
performance and reliability requirements.
The heavy-duty chassis, occupying
only 5.25”
(3U) of rack space while delivering up to 1500 VA of clean, uninterruptible power. The
rounded metal corners and rugged handles front and rear, aid in safe handling. Internally,
all major components are well secured and electrically insulated to prevent damage
due to shock and vibration. These units can be mounted horizontally
or vertically. Optional heavy-duty rack slides provide easy installation and removal
of the unit with full extension.
The internal shielded input transformer
provides galvanic isolation with provisions for both domestic (120 VAC, CONUS) and
international (240 VAC, OCONUS) input voltages. The autoranging input voltage selection
allows inputting either 120 VAC or 240 VAC without having to open the UPS enclosure.
Special EMI/RFI filters and input power factor correction minimize both input current
and harmonics. The unit also operates
as a frequency converter, taking 46-70 hertz input and converting it to clean, uninterruptible
60 hertz power. Optionally, 46-440 hertz input as well either 50 or 400 hertz
outputs are available.
The LED arrays keep the operator
informed as to the unit's status including load and battery levels. The
Elapsed Time Indicator records the number of operational hours for records and
scheduling preventative maintenance of attached equipment. The front panel also
provides easy access to both the AC Input and Battery Input fuses. Coupled with
the adjacent spare fuses, MTTR is reduced to less than 15 minutes.
The internal intelligent thermal sensors provide
two stage monitoring of unit temperatures, with both local and remote Battleshort
override capability of thermal shutdown. Battleshort can be engaged via the front
panel control, via a remote contact input or via a software command. When in Battleshort,
an audible alarm is sounded and an indicator is lit. The high intensity
audible alarm can be heard in high noise environments and includes an audible enable/disable
switch.
All controls and protective devices are
brought to the front and rear panels with critical switches or circuit breakers
having finger guards. Further, all front panel devices are recessed to prevent damage
or accidental operation. Clips on the front panel hold spare fuses for ready access. The
input circuit breaker and the galvanic isolation transformer all provide a double
pole isolated source for all installations including shipboard systems or overseas
locations where phase references and grounding are not consistent. The manual
bypass feature included is operated from the front panel. Even in the bypass mode,
the ETI0001-2228E still
provides galvanic isolation, transient surge protection and EMI/RFI filtering.
The ETI0001-2228E has
the added benefit of having a field replaceable battery via front
drawout battery module. The battery is a true hot-swappable module and does
not require going to bypass like competing units. Even with this battery module
removed, this UPS can continue to operate as an electronic power conditioner
and frequency converter, providing clean, well regulated, sinusoidal power to
the load. The batteries are maintenance free with immobilized electrolyte and
are constructed of flame retardant materials for added safety. For more information,
see the Battery Technology section.
The rear panel provides locking connectors
for the input and output power with various optional configurations available.
The two Status connectors provide an interface with optional computer
software providing loss of AC and low battery status as well as remote shut
down capability.
This unit draws air through the front air filter
and exhausts out the rear vent into the rack. This allows the unit to be used in
negative or neutral pressure racks. For positive pressure racks, rear to front or
rear to side versions are available. The removable and washable metal screen air
filters and high capacity stainless steel ball bearing fans provide added protection
in both controlled and hostile environments.
See the Power
Distribution Units section for a listing of stand alone PDUs. See the N5
Series section for versions of UPS with an integrated PDU and remote control.
Overall, the PowerStation line is uniquely
qualified for critical shipboard, vehicle, airborne or land based systems combining
advanced modular design features with highly reliable construction.
Up to 100% non-linear load
capability w/o derating
Output voltage regulation:
UPS
± 3.0% static regulation
of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity:
UPS
110% for 10 minutes; 125%
for 30 seconds
Harmonic distortion: UPS
Less than 5.0% into 100%
non-linear load
Output frequency: UPS
60 Hz or 50 Hz ± 1.0%
400 or 1000 Hz output available as an option
Operational status
AC Input status, UPS operational,
UPS alarm, Battery level, Low battery, Load level, Overload, Warm temperature,
Hot temperature, Manual bypass and Battleshort LEDs, Elapsed time hour meter
Alarm contacts for Loss of AC and Low Battery
+90 dB audible alarm with audible on/off switch
AC INPUT
Input voltage selection:
Autoranging from nominal
120 VAC to 240 VAC
Input voltage tolerance:
UPS
90-264 VAC @ full load without
using battery
Input frequency:
From 46 Hz to 70 Hz standard,
optional to 440 Hz
Input power factor:
>95%
typically at full load
Input/output isolation:
1500 VA, up to 120 dB common
mode, <5.0 mA leakage
Input transient suppression:
Complies with IEEE 587,
UL 1449 and Mil Std 1399
Input control/protection:
Guarded 2 pole 100 G shock
rated circuit breaker (CB1)
plus UPS input fuse (F2), spare fuse on front
Manual bypass switch to force bypass mode
Input power connections:
One IEC 60320-C14, 3 pin,
others optional
Input power cable:
One 6 ft (1.83 m) with IEC
60320-C13 on one end and NEMA 5-15P plug on other end, others optional
INTERNAL BATTERY
Internal
Maintenance free immobilized
electrolyte,
Flame retardant materials (Oxygen Index 28+)
Internal
Rated for continuous service
life of 5 years
Internal
Front panel mounted fuse
(F1), spare fuse on front
Hot swap drawout/plug-in
module from front of unit
<3 minutes to change battery modules
Battery expansion:
Up to 24 hours w/ optional
Battery Expansion Modules
DISTRIBUTION
PANEL
Output circuits:
Six AC outputs standard,
several optional configurations
Output control:
Optional remote control
panel w/switches available
Output receptacles: AC output
NEMA 5-15R
various options
MECHANICAL
Dimensions (H x D x W):
UPS
5.25 (3U) x 23.5 x 19.0
in (133 x 597 x 483 mm)
Rack Slide Mount Patterns:
Jonathan, General Devices
patterns standard, others optional
Alternate Mounting Options:
Table, Wall, Floor, Portable,
Horizontal/Vertical
Unit weight: UPS and Standard
Battery
UPS
only
Standard
Battery Module only
Optional
Battery Module only
77 lb. (35 kg) with lift
handles front and rear
50 lb. (23 kg) with lift handles front and rear
27 lb. (12 kg) with lift handle in front
37 lb. (17 kg) with lift handle in front
Audible noise:
Less than 50 dB @ 5.0 ft.,
ANSI "A"
scale
Cooling type:
High capacity, negative
pressure, forced air
Cooling air direction:
Front intake, exhaust to
rear, others optional
Air intake filter:
Washable metal filter media,
others optional
ENVIRONMENTAL
Storage temperature:
-40° to 158° F ambient
(-40° to 70° C) with fully charged batteries
Operating temperature:
-4° to 131° F ambient
( -20° to 55° C), lower/ higher optional
Operating humidity:
0 to 95% relative humidity
(non-condensing)
Storage elevation:
Up to 49,212 ft (15,000
m)
Operating elevation:
Up to 15,000 ft (4,572 m),
higher optional
STANDARDS
United States:
Meets UL-1778 standard for
UPS equipment,
MIL STDs 167-1, 454, 810, 901D Grade A, 1399-300A & 2000
